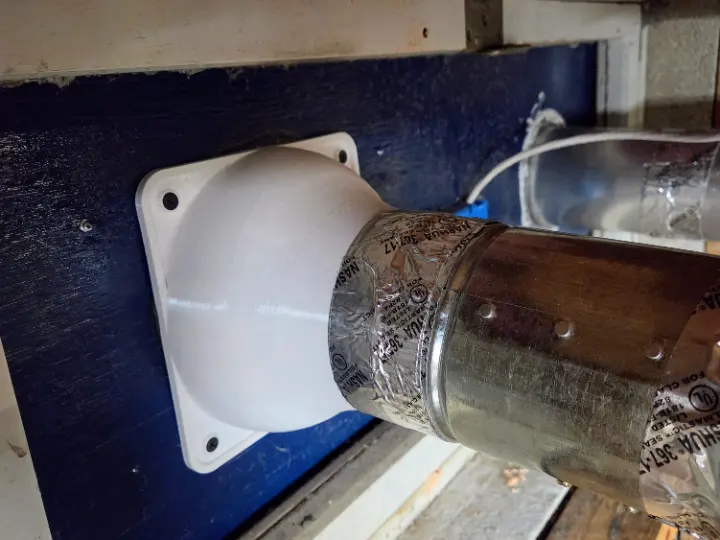

6" to 4" Ventilation Duct Adapter

Born out of a need to properly vent an ABS printer whilst utilizing an existing 6" duct, this adapter can be adapted to your needs.

Note: Design is not parametric but could be if desired. Please provide feedback via the Patreon community if you are interested.

Printing Tips

Printing Technology: FDM
Layer Height: 0.2mm
Perimeters: 6
Infill: 10%
Infill Pattern: Gyroid
Recommended Material: PETG, ABS
Supports: None
Support Type: None

Notes:
Designed to have zero overhangs and smooth airflow.

Assembly Instructions

Materials Needed:
1x Ductwork
1x Length of Duct Sealant Tape
4x Wood Screws (or other fastener)


Instructions:
1. Mount adapter to surface
2. Secure ducting to adapter using tape
