4 Inch Recessed Light Bracket

Bracket to mount a 4'' recessed LED can light to whatever you want. Use cases include unfinished basements, task lighting in a workshop, and sheds or barns.

Bracket that supports 4'' recessed can lights. Can be used to mount recessed LED can lights in an unfinished basement.

Printing Tips

Printing Technology: FDM

Layer Height: 0.2 mm

Perimeters: 6

Infill: 10%

Infill Pattern: Honeycomb

Top Layers: 0

Bottom Layers: 0

Recommended Material: PLA+

Supports: No

Support Type: None

Notes:

Setting top and bottom solid layers to zero and changing the infill pattern to Hexagon gives this print a futuristic look that unfortunately you will never see while the light is on.

Assembly Instructions

Materials Needed:
2x wood screws
1x LED low profile can light
Instructions:

  1. Screw bracket into beam
  2. Install LED light onto bracket

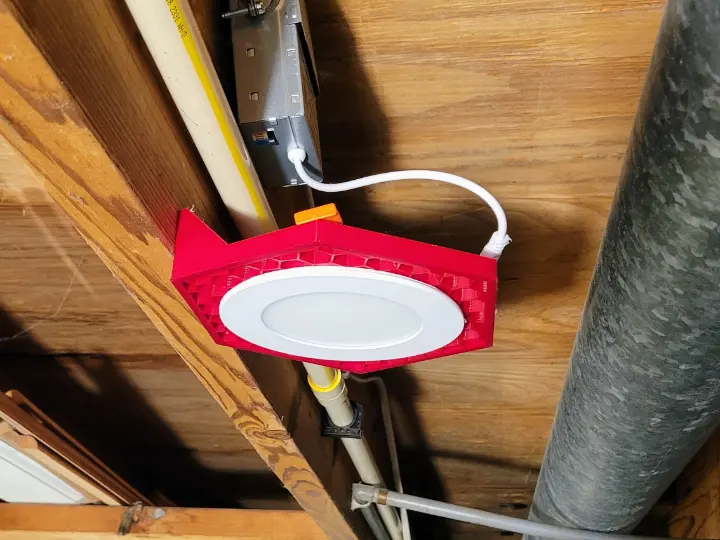

3D printed bracket installed in joist in unfinished basement.

Customize Model

min: 25, max: 100
min: 40, max: 200
min: 2, max: 10

Measure twice, customize once.
