Customizable Duct & Pipe Bracket

Mount ductwork or pipe with a 3D printable bracket. Customize diameter, thickness, and screw size for a perfect install.

Designed for ventilation ducts around 100 mm, this bracket can be customized to hold anything from flex duct to small pipes.
Adjust width, depth, and spacing to match your setup. Useful for mounting between joists, on studs, or inside custom enclosures.

Printing Tips

Printing Technology: FDM

Layer Height: 0.2 mm

Perimeters: 6

Infill: 10%

Infill Pattern: Gyroid

Recommended Material: PLA, PETG, ABS, ASA

Supports: No

Support Type: None

Notes:

- Recommend concentric infill for strength.

- Default model designed for 4 mm screw major diameter

Assembly Instructions

Materials Needed: 2x Screws of your choiceInstructions:

  1. Print
  2. Mount

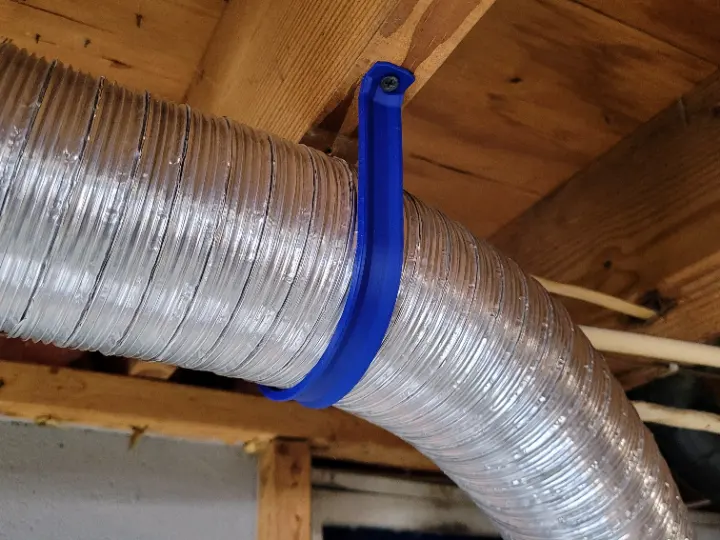

A 3D printed bracket holding up ventilation duct in an unfinished basement.

Customize Model


min: 10 mm, max: 250 mm

min: 1 mm, max: 15 mm

min: 2 mm, max: 10 mm

min: 5 mm, max: 15 mm

min: 5 mm, max: 100 mm

min: 0 deg, max: 90 deg

min: 20 mm, max: 235 mm
