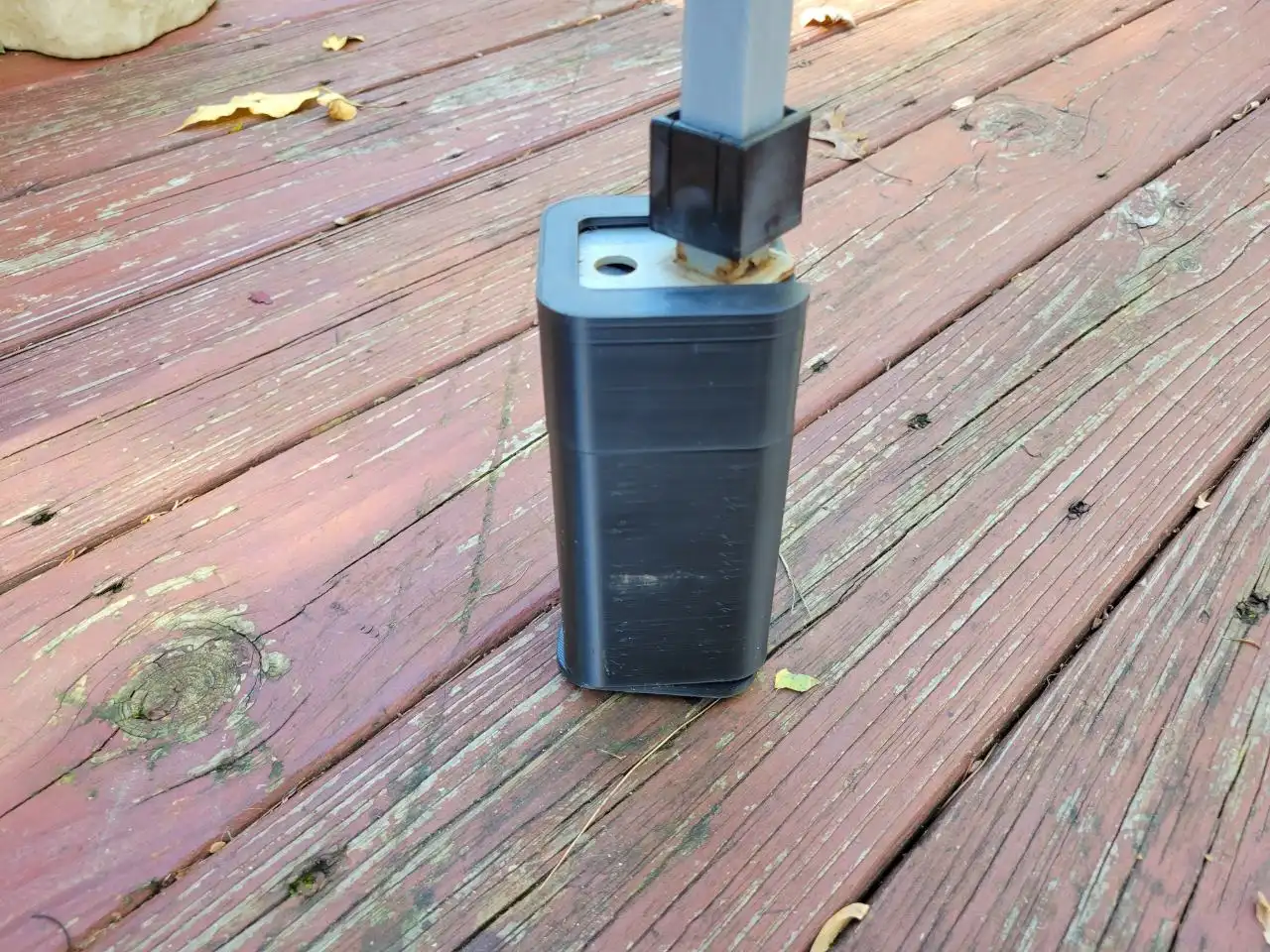

Collapsible Tent Foot Extension

Born out of a desire to no longer smack ones head on an unreasonably low collapsible tent, this model allows you to incrementally extend the height of the tent using threaded attachments.

Printing Tips

Printing Technology: FDM
Layer Height: 0.2mm
Perimeters: 5
Infill: 10%
Infill Pattern: Gyroid
Recommended Material: ABS
Supports: None
Support Type: None

Notes:
Offset of the slot is designed to accommodate the bridging/overhang, but some sanding may be required for a good fit.

Assembly Instructions

Materials Needed:
None


Instructions:
1. Attach adapter to foot
2. Screw in height extensions as necessary

Download Links

Legal Notice:

These files are not to be used for commercial purposes without prior written consent.

By downloading and using these designs, you agree to our Privacy Policy, Terms of Service, Disclaimer, EULA, and Cookie Policy.

Model Comments

Comments Section Under Construction

Feel free to submit feedback via the form below

Customize Model

min: 25, max: 100
min: 40, max: 200
min: 2, max: 10
