Customizable Tag with Embedded TPU Strap - MMU

Custom tag with embedded TPU strap. Adjustable size, text, and strap length. No hardware needed.

This is a customizable tag with an embedded TPU strap, designed to create a flexible, durable attachment without hardware. You can adjust the tag size, top and bottom text, and strap length to fit anything from luggage and cables to bins, tools, or storage systems. The embedded strap design keeps everything secured while staying easy to attach, remove, and reuse across different setups.

Workshop Notes: Looking for feedback on strap thickness, feature requests/suggestions, and how this gets printed in a multi material setup.

Printing Tips

Printing Technology: FDM

Layer Height: 0.2 mm

Perimeters: 4

Infill: 10%

Infill Pattern: Gyroid

Recommended Material: PLA, PETG. TPU for strap.

Supports: No

Support Type: None

Notes:
- Leave ~0.3 mm clearance for reliable insertion
- Make sure the strap is fully seated before resuming
- No glue or hardware required

Assembly Instructions

Materials Needed:
None

Instructions:

  1. Print the TPU strap first. Use standard TPU settings. No supports needed.
  2. Start the main (PLA/PETG) print. Add a pause right before the bridging layer that closes over the strap cavity.
  3. Insert the TPU strap by placing it into the cavity. It should sit flush without force.
  4. Resume the print. The printer will bridge over the strap and fully capture it inside the part.
  5. Remove and use. Once finished, the strap is permanently embedded and ready to go.

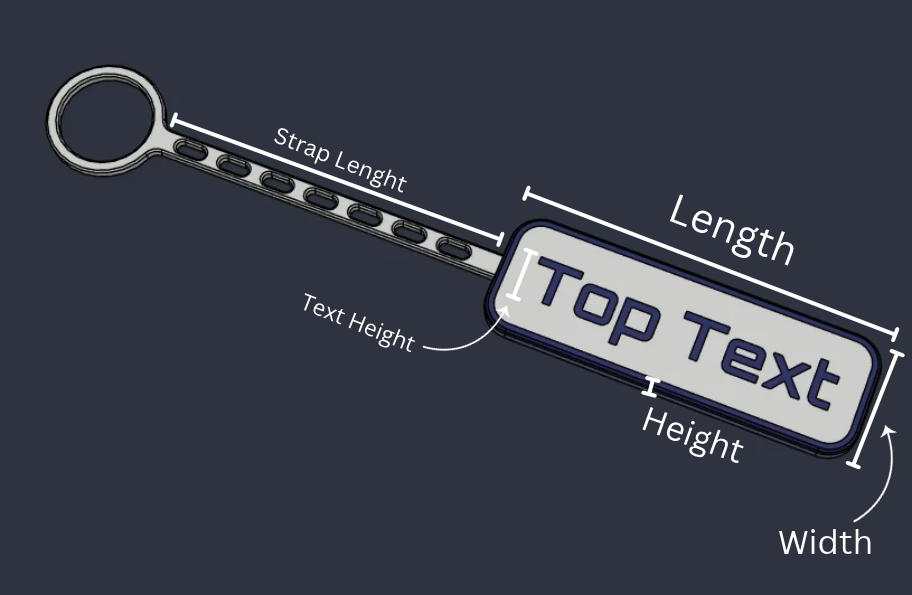

Customize Model


min: 20 mm, max: 235 mm

min: 20 mm, max: 235 mm

min: 2 mm, max: 10 mm

min: 2 mm, max: 10 mm


min: 2 mm, max: 5 mm

min: 1, max: 5

min: 0.1 mm, max: 0.4 mm

min: 20 mm, max: 235 mm
