Magnetic Nameplate Color Swap

Custom magnetic nameplate 3D printed with your text, plate size, and embedded magnet size using a manual color swap.

Create a custom 3D printed magnetic nameplate for single-extruder printers using a simple manual color swap.

Customize the text, plate dimensions, and embedded magnet size to make removable labels, signs, tags, or nameplates without needing an automatic filament changer. Ideal for shelves, toolboxes, lockers, bins, equipment, displays, and workshop organization.

Printing Tips

Printing Technology: FDM

Layer Height: 0.2 mm

Perimeters: 4

Infill: 10%

Infill Pattern: Gyroid

Recommended Material: PLA, PETG, TPU

Supports: No

Support Type: None

Notes:
- Check magnet polarity before inserting if the nameplate needs to match an existing magnetic surface or another printed part.
- Magnet fit can vary slightly by printer, filament, and magnet supplier, so test one plate before batch printing.
- No supports should be needed.

Assembly Instructions

Materials Needed:

Disclosure: As an Amazon Associate I earn from qualifying purchases.

Instructions:

  1. Slice and insert two pause / color changes, first at the layer just before bridging starts on the magnet cavities and second just before text cover starts.
  2. Insert magnets at first pause, ensuring magnet polarity is consistent.
  3. Swap colors at second pause and resume printing.

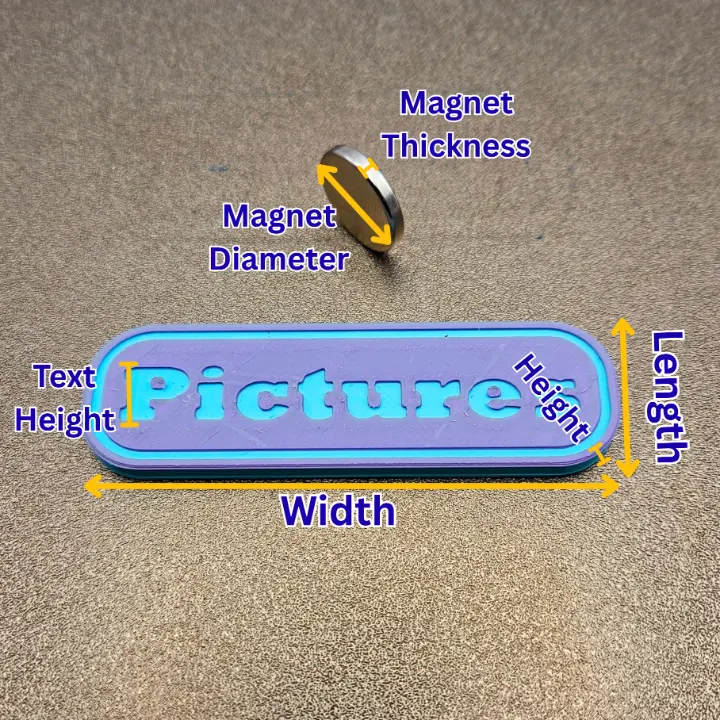

Customize Model


min: 20 mm, max: 235 mm

min: 50 mm, max: 235 mm

min: 0.1 mm, max: 25 mm

min: 6.0 mm, max: 30 mm

min: 1 mm, max: 5 mm


min: 0.1 mm, max: 0.4 mm

min: 0.4 mm, max: 1 mm

min: 0.2 mm, max: 1 mm

min: 1 mm, max: 10 mm

min: 8 mm, max: 20 mm

min: 0 mm, max: 0.5 mm

min: 0 mm, max: 0.2 mm
