Parametric S Hook

A parametric S hook that can be adapted to your dimensions. Great for hanging and clipping things.

Printing Tips

Printing Technology: FDM
Layer Height: 0.2mm
Perimeters: 4
Infill: 10%
Infill Pattern: Gyroid
Top Infill Pattern: Concentric (Filled)
Bottom Infill Pattern: Concentric (Filled)
Recommended Material: PLA, PETG, ABS
Supports: None
Support Type: None

Notes:
Concentric top and bottom infill pattern was used for strength and aesthetics.

Assembly Instructions

Materials Needed:
None

Instructions:
1. Print
2. Hang/connect things

Download Links

Legal Disclaimer:

The files provided here are for personal, non-commercial use only. Redistribution, modification, or commercial use is not allowed without prior written consent from Lunar Prototypes.

Model Comments

Comments Section Under Construction

Feel free to submit feedback via the form below

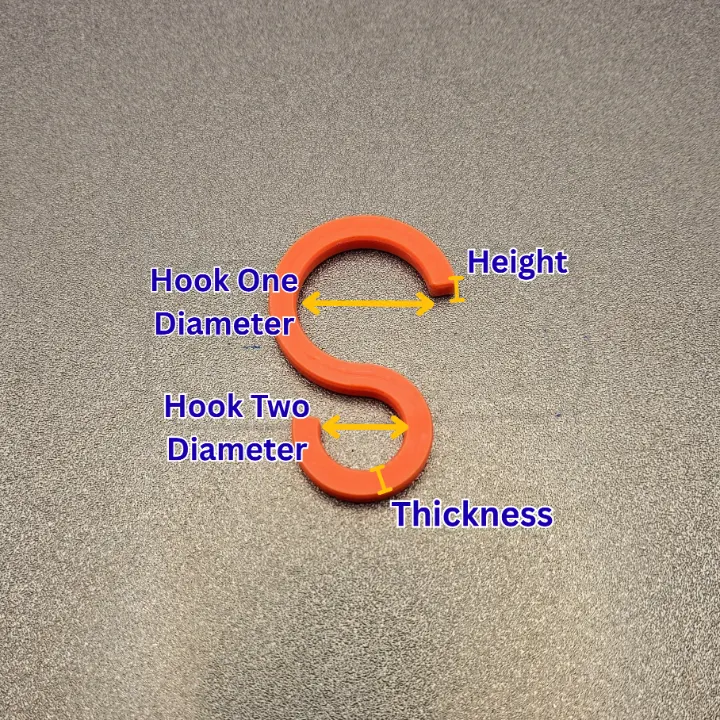

Customize Model


min: 2 mm, max: 200 mm

min: 2 mm, max: 200 mm

The lower the degree of the angle, the more complete the circle of the hook will be.
min: 30, max:  130

The lower the degree of the angle, the more complete the circle of the hook will be.
min: 30, max: 130

min: 5, max: none

min: 3 max: 30
