Wall Mount Tablet Holder

Custom tablet wall mount generator with adjustable width, thickness, port slots, and screw sizing.

Tablet wall mount generator that creates a custom-fit mount based on your device dimensions. Adjust width, height, and thickness, add side cutouts for ports and cable clearance, and select screw size and mounting hole spacing.

Designed to fit a wide range of tablets and mounting setups with minimal modification.

Printing Tips

Printing Technology: FDM

Layer Height: 0.2 mm

Perimeters: 4

Infill: 10%

Infill Pattern: Gyroid

Recommended Material: PLA, PETG, ABS, ASA

Supports: Yes

Support Type: Tree

Notes:
- Supports required, recommend tree supports.
- For toolchangers/multi material printers, recommend PETG interface if mount is printed in PLA.

Assembly Instructions

Materials Needed:
1x Tablet

Instructions:

  1. Measure length and width of tablet.
  2. Measure distance from base of tablet face to first port for both sides.
  3. Measure distance between start of first port and end of last port.
  4. Repeat for both sides.
  5. Set dimensions in customizer and generate.
  6. Print & mount.

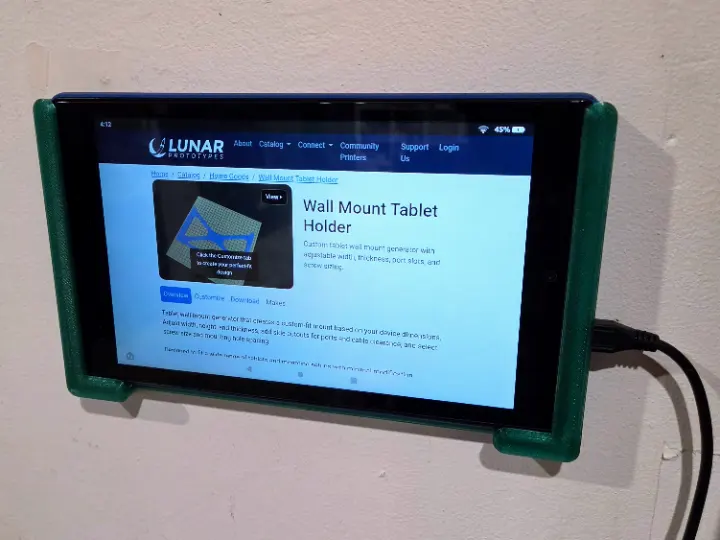

A custom sized 3D printed wall mount tablet holder.

Customize Model


min: 20 mm, max: 235 mm

min: 20 mm, max: 235 mm

min: 20 mm, max: 235 mm

min: 12.0 mm, max: 235 mm

min: 20 mm, max: 235 mm

min: 12.0 mm, max: 235 mm

min: 20 mm, max: 235 mm

min: 2 mm, max: 5 mm

min: 5 mm, max: 15 mm


min: 5 mm, max: 15 mm

min: 5 mm, max: 10 mm

min: 5 mm, max: 7.0 mm

min: 0.2 mm, max: 1 mm

By using the customization software, you agree to our Privacy Policy, Terms of Service, Disclaimer, EULA, and Cookie Policy.

Measure twice, customize once.

Something doesn't look right, or not sure what a setting means?

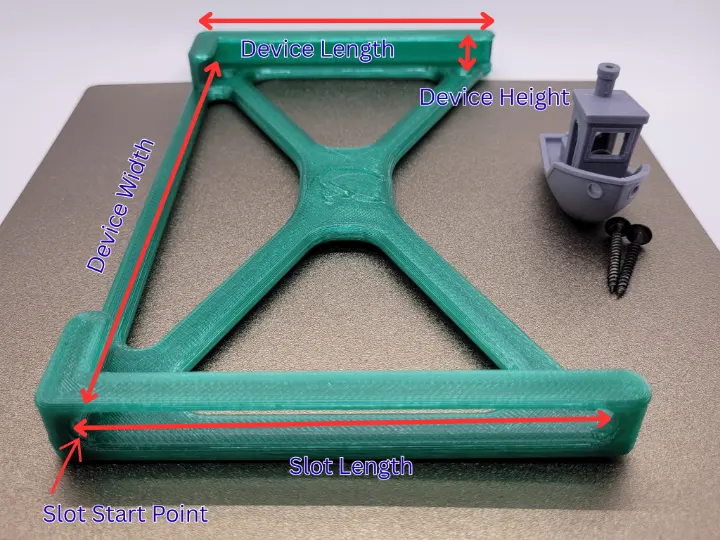

Details of the parameters used to customize the 3D printed wall mount tablet holder.

Download your design

Choose a file below and open it in your slicer. For designs with several components, download every part you need. Original files use the design defaults; your customized files appear here after generation.
