Replacement Caster Wheel

Custom replacement caster wheel with adjustable ID, OD, and thickness for rolling carts and utility carts.

This customizable replacement caster wheel is designed to repair failed wheels on rolling kitchen carts, utility carts, wire shelving, and shop carts.

Adjustable inner diameter, outer diameter, and thickness fit common axles and mounts, with ABS tested and near-solid TPU recommended for quiet, durable rolling.

Printing Tips

Printing Technology: FDM

Layer Height: 0.2 mm

Perimeters: 4

Infill: 10%

Infill Pattern: Gyroid

Recommended Material: PLA, PETG, ABS, ASA, TPU

Supports: No

Support Type: None

Notes:
- Tested in ABS, but may be better in TPU

Assembly Instructions

Materials Needed:
1x Failed caster wheel or project requiring a wheel, and associated hardware.

Instructions:

  1. Measure original part and determine necessary inner diameter and thickness.
  2. Customize and print.
  3. Replace!

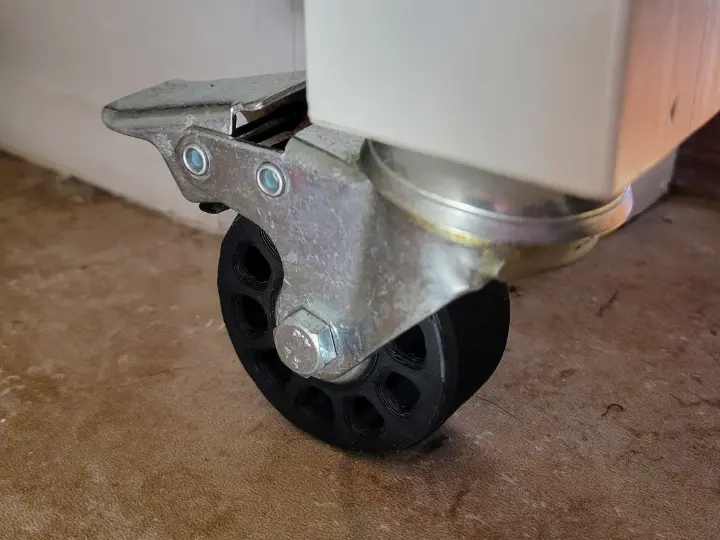

A 3D printed replacement caster wheel installed on a rolling cart.

Customize Model


min: 5 mm, max: 25 mm

min: 25 mm, max: 100 mm

min: 5 mm, max: 100 mm


min: 10 mm, max: 50 mm

min: 15 mm, max: 75 mm

By using the customization software, you agree to our Privacy Policy, Terms of Service, Disclaimer, EULA, and Cookie Policy.

Measure twice, customize once.

Something doesn't look right, or not sure what a setting means?

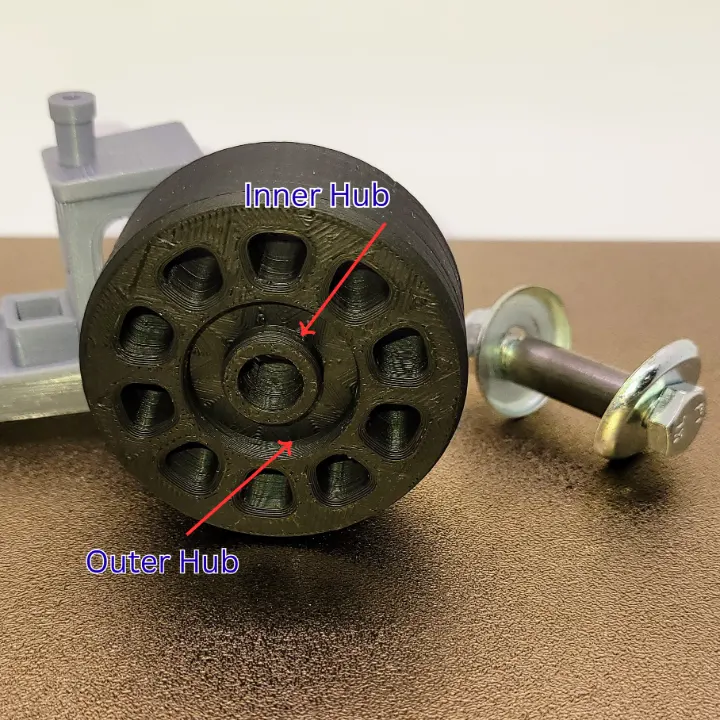

Detailed parameters of a 3D printed replacement caster wheel.

Download your design

Choose a file below and open it in your slicer. For designs with several components, download every part you need. Original files use the design defaults; your customized files appear here after generation.
